Technical Parameters
|
Max lifting capacity |
5000kg |
|
Max lifting height |
1825mm |
|
Min Lifting height |
110mm |
|
Width outside columns |
3600mm |
|
Width inside columns |
3100mm |
|
Drive through width |
2780mm |
|
Overall width |
3770mm |
|
Overall height |
3900mm |
|
Lifting time |
50s |
|
Lowering time |
40s |
|
Voltage |
220v/380v |
|
Motor power |
2.2KW |
Main Feature

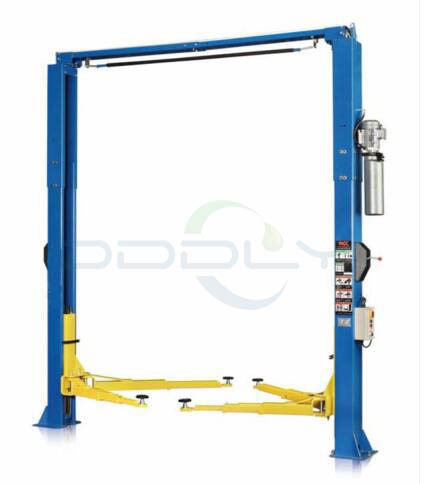

1. Electronic gantry hydraulic lift,suitable for not more 5 tons�?small and medium vehicle.
2. Drive with dual cylinders,rise and fall smoothly.
3. With steel-rope balance system,ensure two sliding tables move at same time,prevent vehicles�?lift.
4. Setting regulation holes,easy for repair and maintenance.
