Main Feature

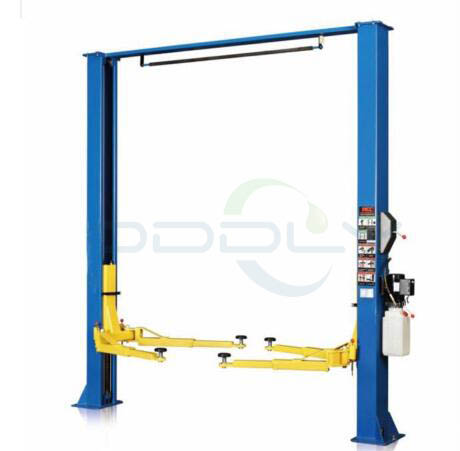

1.Electronic gantry hydraulic lift,suitable for not more 4 tons small and medium vehicle.
2.Drive with dual cylinders,rise and fall smoothly.
3.With steel-rope balance system,ensure two sliding tables move at same time,prevent vehicles lift.
4.Asymmetrical design to make it possible to open vehicle doors within narrow width between columns.
5.Setting regulation holes,easy for repair and maintenance.
Technical Parameters
|
Max lifting capacity |
4000kg |
|
Max lifting height |
1900mm |
|
Min Lifting height |
110mm |
|
Width inside columns |
2500mm |
|
Drive through width |
2800mm |
|
Overall width |
3380mm |
|
Lifting time |
50s |
|
Voltage |
220v/380v |
|
Motor power |
2.2KW |
|
Oil pressure rating |
24Mpa |
|
Weight |
650kg |
