¡ODDLY Company es un proveedor de equipos automotrices!

Detalle

Main Feature

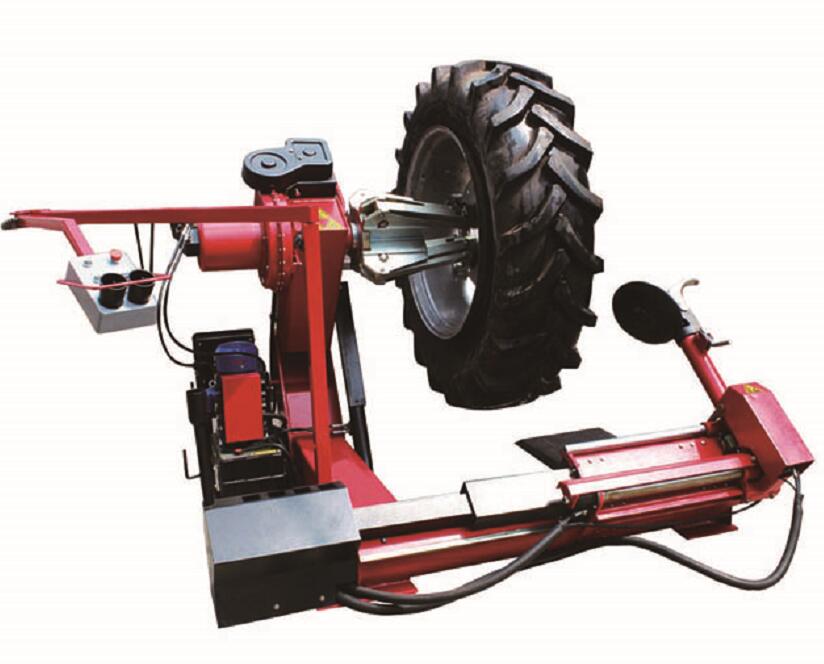

1.Fully-Automatic universal truck tyre changer for industrial,agricultural and earthmoving wheels.
2.Rim capacity is 14 inch to 42 inch.
3.Bead breaker force is 3300kg.
4.Operation voltage is 24V,lifting arm and clamps are hydraulic driving
5.Movable control hand shank to operate.


Technical Data

Model

T590B2

Operating Pressure

130-150 bar

Max. Wheel Diameter

2300 mm

Max Wheel Width

1050 mm

Max. Wheel Weight

1600KG

Bead Breaker Force

3300kg

Max Torque

5265 N.m

Operation control voltage

24V

Noise Level

<70dB

Rim Diameter

14" to 42"

Hydraulic Pump Motor

1.5kw 380V/3Ph/50Hz

Gearbox Motor

1.8kw 380V/3Ph/50Hz

Overall Dimension

2500x2000mm


Package Information

Net Weight                    758KG

Gross Weight                  850KG

Packing Dimension             2230x1970x1050mm

Volume                       4.6m3

Quantity in 20���� Container        6

Quantity in 40���� Container        12
