5.Movable control hand shank to operate.

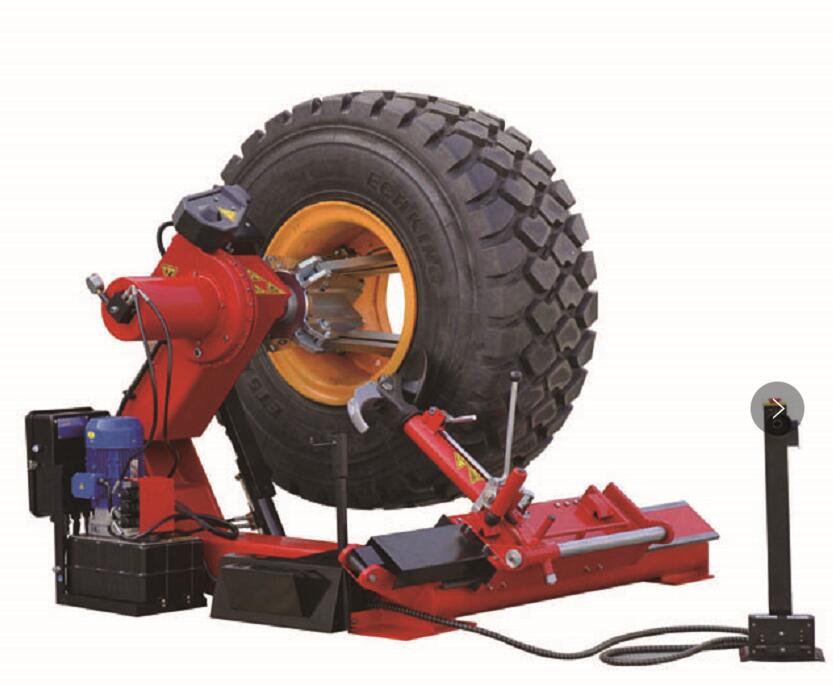

Technical Data
|
Model |
T590B1 |
|
Operating Pressure |
130-150 bar |
|
Max. Wheel Diameter |
2300 mm |
|
Max Wheel Width |
1050 mm |
|
Max. Wheel Weight |
1600KG |
|
Bead Breaker Force |
3300kg |
|
Max Torque |
5265 N.m |
|
Operation control voltage |
24V |
|
Noise Level |
<70dB |
|
Rim Diameter |
14" to 42" |
|
Hydraulic Pump Motor |
1.5kw 380V/3Ph/50Hz |
|
Gearbox Motor |
1.8kw 380V/3Ph/50Hz |
|
Overall Dimension |
2500x2000mm |
Package Information
Net Weight 758KG
Gross Weight 850KG
Packing Dimension 2130x1850x1050mm
Volume 4.13m3
Quantity in 20���� Container 6
Quantity in 40���� Container 12
Quantity in 40���� Container 12
