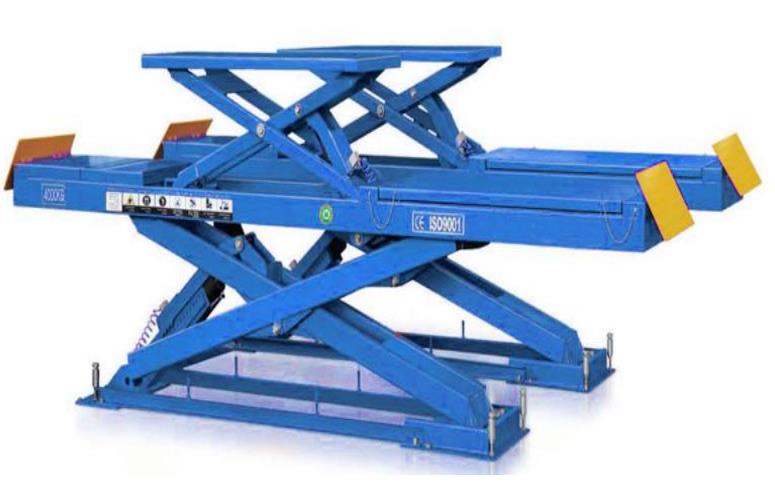

Main Feature
1.In-ground mounted, occupied small space.
2. Electric control pneumatic release, safety and reliable.
3.Hydraulic system adopts the advanced integrated valve plate oil and imports of seal parts.
4.Power failure can adopt manually will the car drop out.
5.Oil cylinder with upper return oil, prevent oil cylinder rust.
Technical Parameters
|
Max lifting capacity |
5000kg |
|
Max lifting height |
Main machine 2100mm Jack 480mm |
|
Min Lifting height |
340mm |
|
Lifting time |
70s |
|
Platform width |
600mm |
|
Platform length |
5000mm |
|
Total height |
2500kg |
|
Voltage |
380V/220V |
|
Motor power |
2.2KW/ 3KW |
